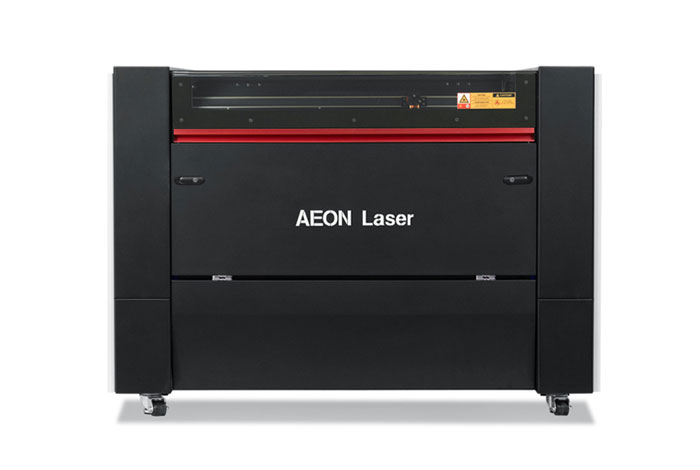

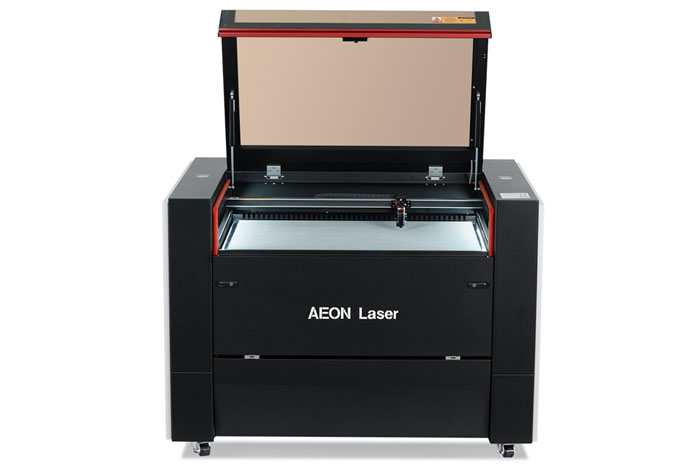

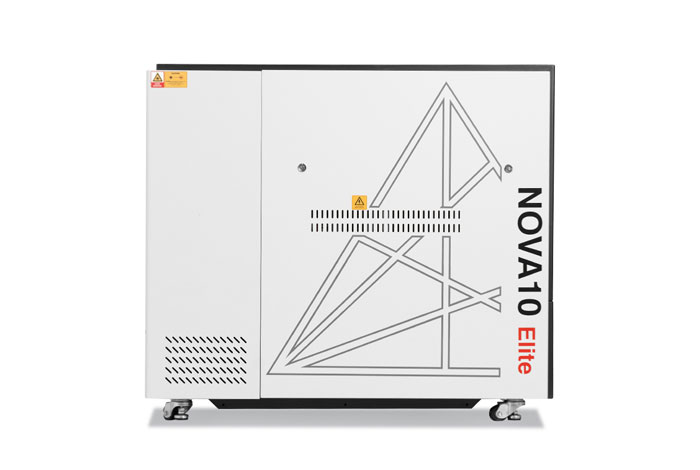

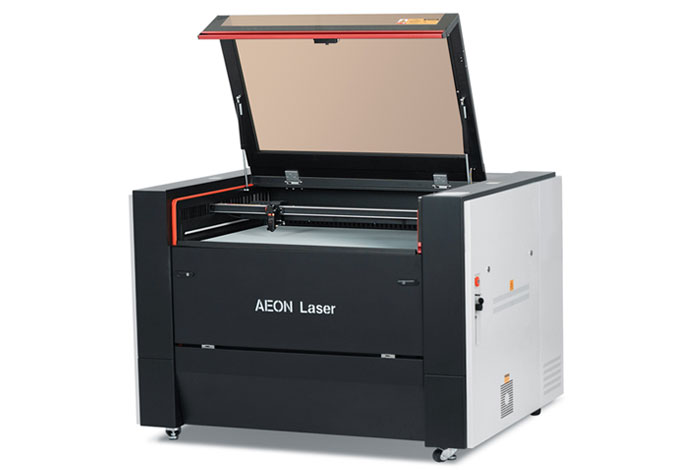

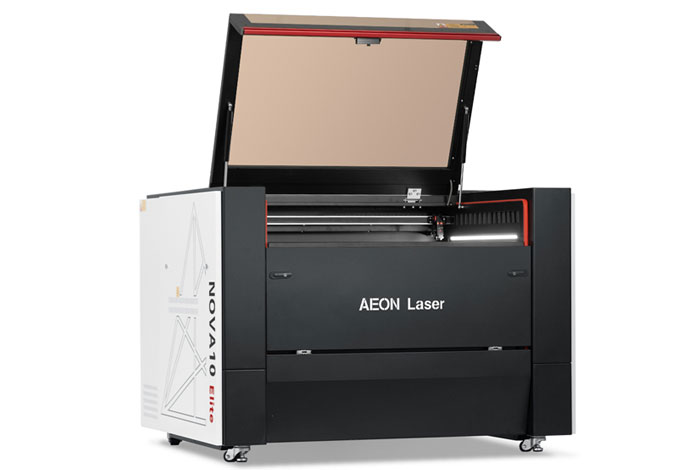

Advanced, free-standing CO2 laser NOVA S

2-phase DC high-speed stepper motors | DC Clear Path servo motors (Signature edition)
Features material pass-through doors
Offers depth capability up to 7-7/8" (200 mm)
Includes integrated water cooling system, exhaust fan, and air assist pump
Achieves maximum acceleration of 5G (DC) / 8G (RF)
Attains maximum speeds of 1200 mm/s (DC for Glass) | 5000 mm/s (Signature edition)
Certified as a Class 1 laser
Sleek and modern design





Features

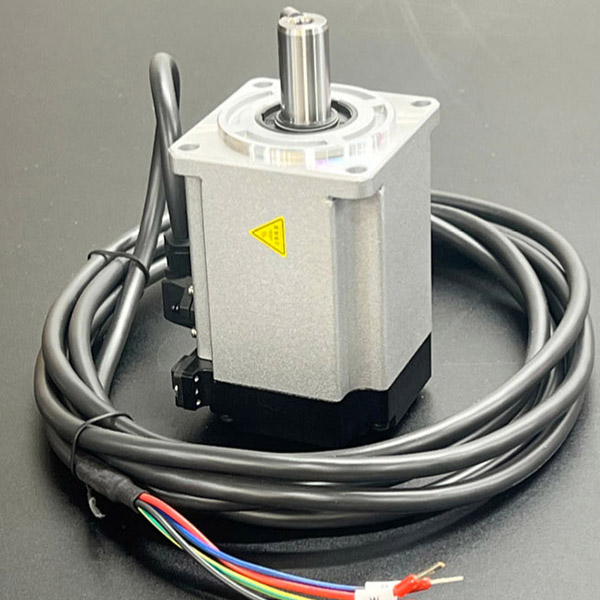

Acceleration up to 8G

With full AC servo motors, acceleration is almost instantaneous, reaching 8G at a maximum speed of 4,200 mm/s on all RF-powered models.

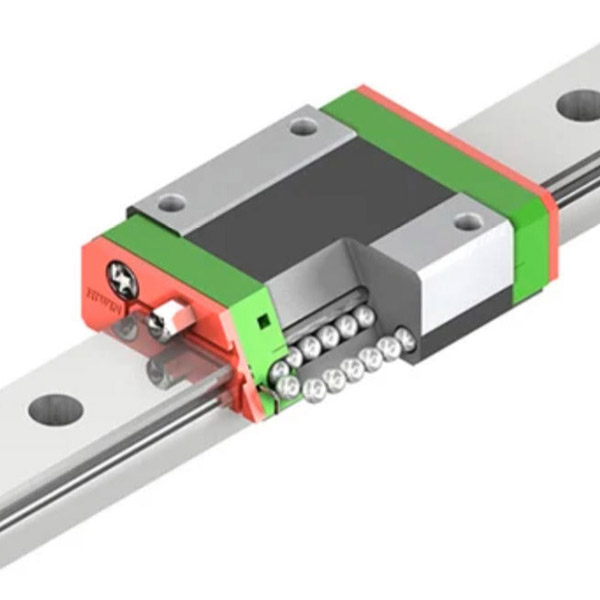

Exceptional precision

Linear ball-bearing guides ensure greater precision and smoother movements, resulting in improved print quality and durability.

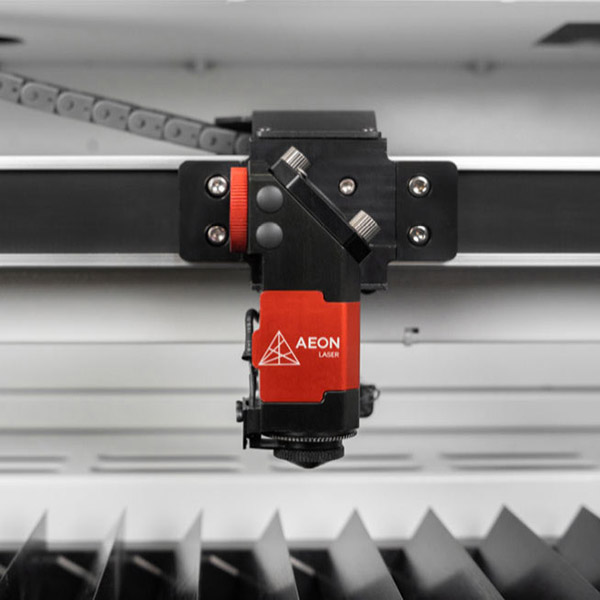

Lightweight laser head

The lightweight design of the laser head helps reduce excessive scanning and overall vibration, resulting in improved work quality.

Stable unibody design

Most lasers are based on a unibody design, where components are attached to a thin outer shell. However, in order to achieve high speed performance, it is crucial that the frame is extremely rigid to prevent deformation of the machine. The frame design on the Redline series is so robust that even the side panel can be completely dismantled for easy access when troubleshooting any problems.

Revolutionary all-in-one design.

In NOVA's new Super Clean Pack design, the linear rails and bearing blocks are enclosed, protecting them from contamination. Additional protective curtains on both sides of the rail prevent particles from spreading outside the work area, improving cleanliness and process safety.

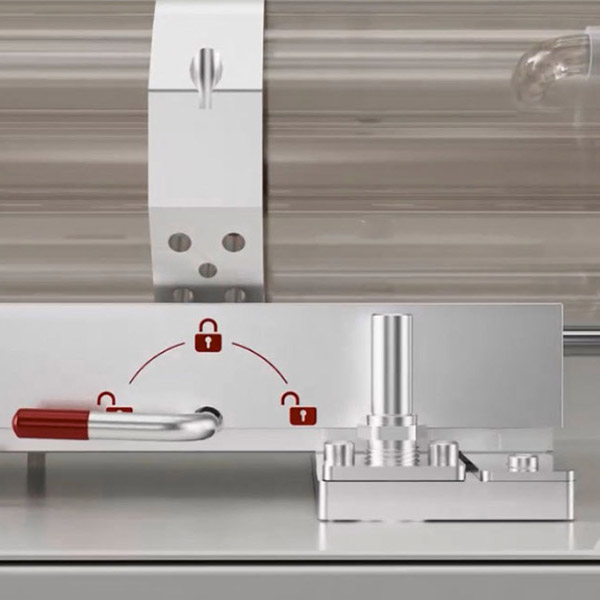

Innovative docking station with modular tubes

The Modular Tube docking station is a revolutionary solution that allows lamps of different wattages to be changed quickly, without the need for tools. Thanks to this innovative approach, it is possible to easily switch between different wavelengths on all models, including 1064 nm fibre lasers. This opens up completely new perspectives, extending the range of materials that can be processed, while ensuring the highest quality performance.

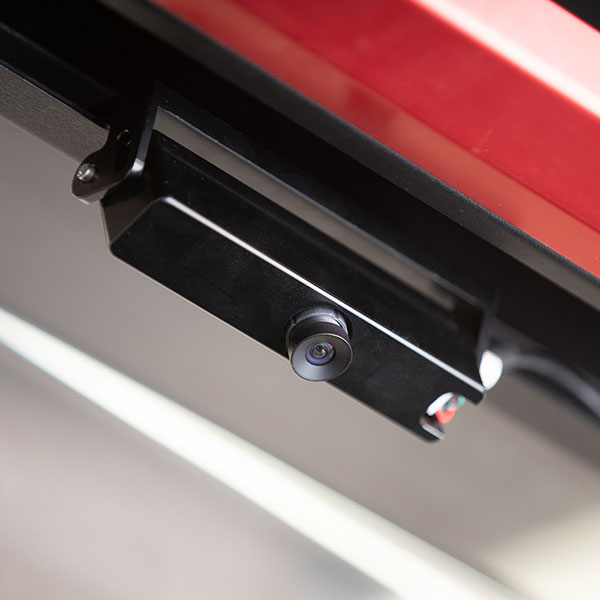

State-of-the-art high-resolution camera

All Aeon laser devices have been upgraded with an integrated high-resolution camera, allowing accurate positioning and monitoring of the work process.

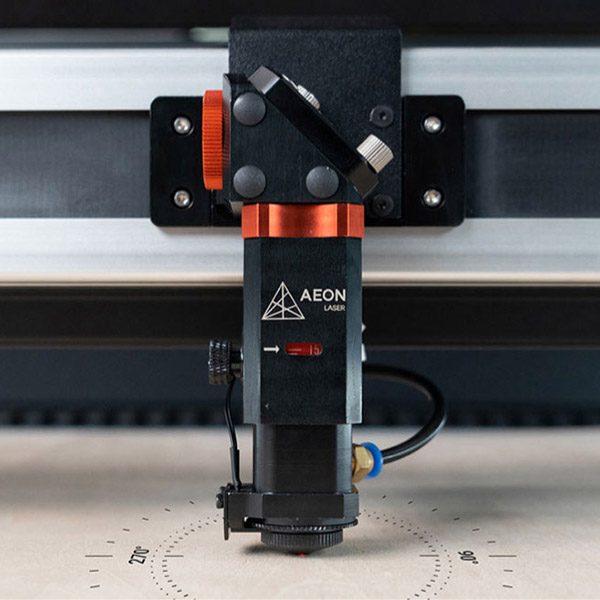

∇ Integrated autofocus

Forget about collisions and gouges in the material with the new Aeon Redline series with autofocus laser head. It automatically adjusts to the thickness of the material, ensuring precision and efficiency in laser processing.

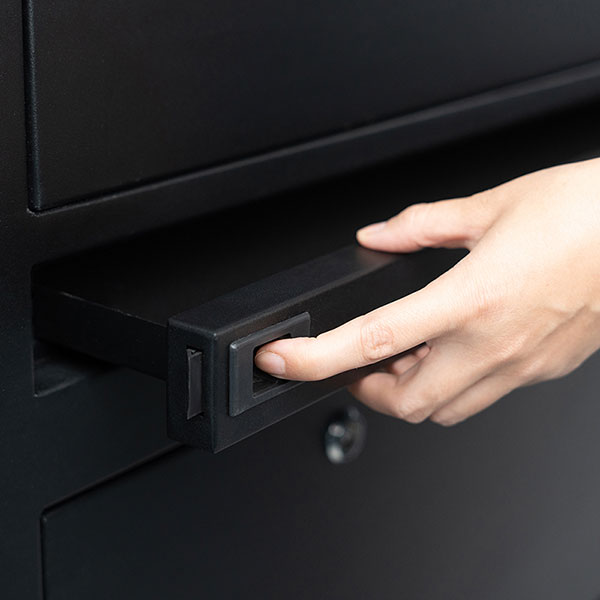

Improved material passage

Thanks to the involvement of the design team, the Redline series has introduced the expected transition in all NOVA models! This is a significant step that enables consistent use across models while maintaining high quality and performance.

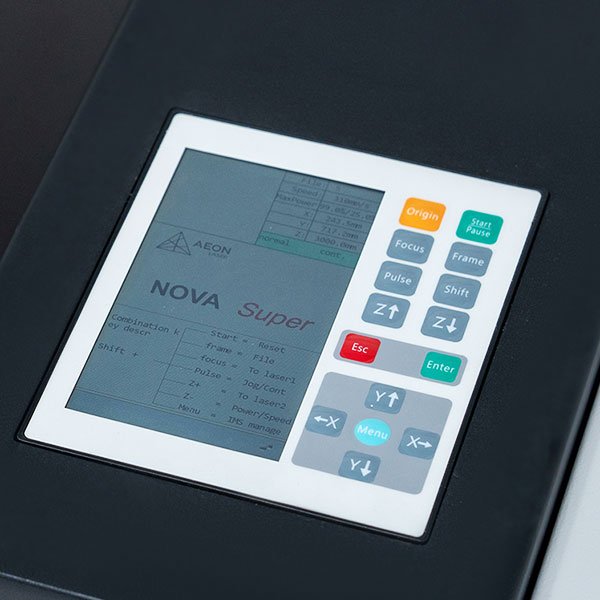

∇ Intuitive LCD screen

NOVA's newest keyboard is a revolution in operation. Key functions are now available directly on its surface, reducing setup time and making it easier to use. With a vivid 5-inch LCD display, you can monitor water temperature, amperage (mA), air pressure (psi) and optics temperature for complete control and convenience during operation.

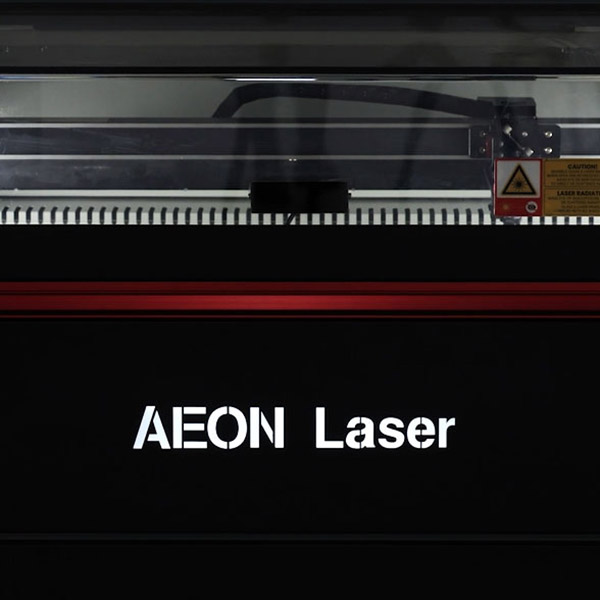

Status indicator

Aeon is known for its elegance and stylish design. Now the Aeon Laser logo on the front door panel has been illuminated to serve as a status indicator. It glows white when in standby mode, red when an error is encountered and green when in operation. This sophisticated addition not only emphasises the elegance of the design, but also adds to its functionality.

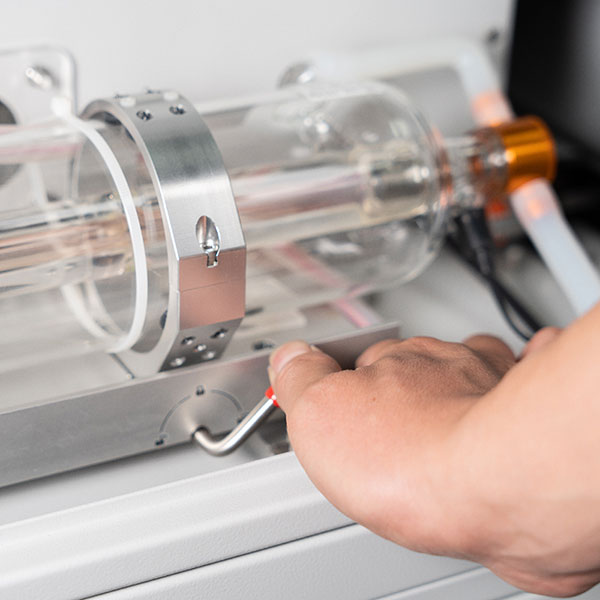

Tool-free maintenance: easy pipe replacement

Say hello to the ease of changing tubes. Thanks to an innovative approach, it is possible to quickly change tubes both inside and outside the Aeon laser, without having to translate the beam path. Now you can have spare fluorescent tubes on the shelf and swap tubes of different wattages quickly when needed, without tedious maintenance operations.

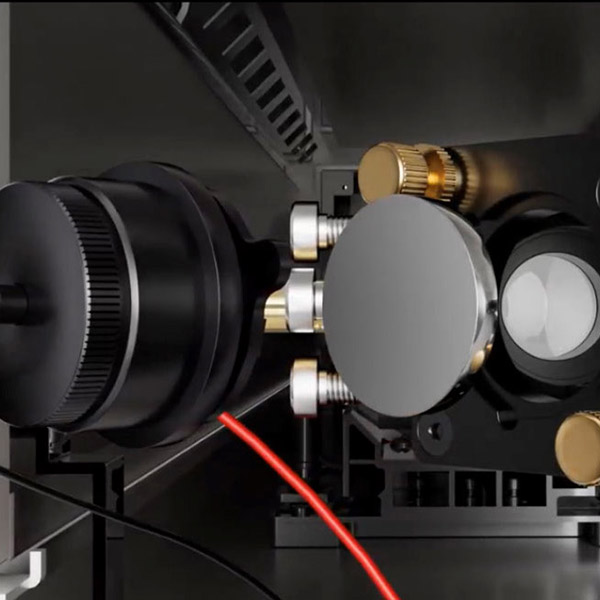

Maintenance without tools: Mirrors

Now all mirrors are easily accessible and can be cleaned or replaced without any tools or recalibration.

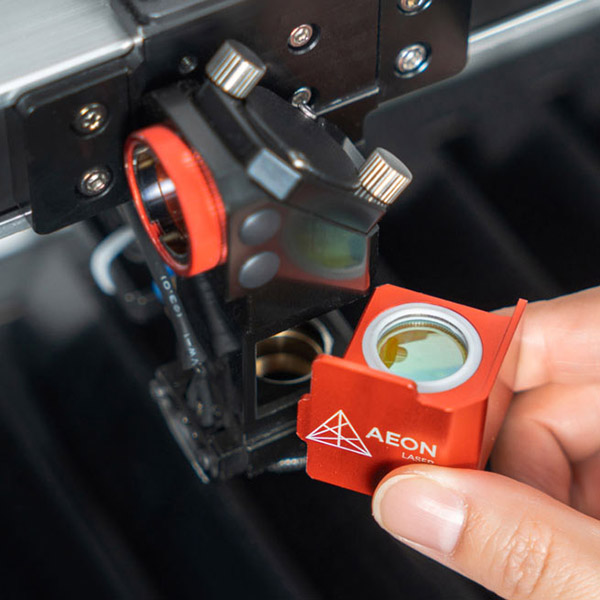

∇ Tool-free maintenance: Lens cartridges

All Redline models now feature magnetic lens cartridges and the focal lens itself is easily pushed in with a silicone pad, providing convenient access for maintenance.

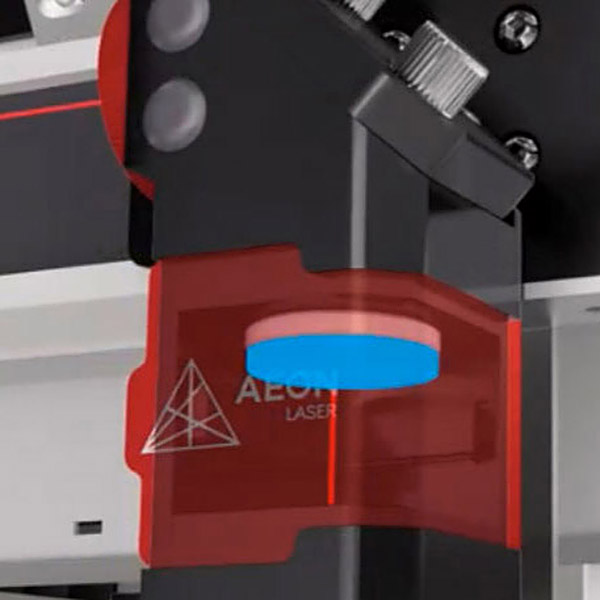

Proactive Smart Monitoring with intelligent solutions

All optical components are now equipped with thermal sensors that monitor the temperature and transmit the information to the keyboard. This reduces the risk of unexpected faults. This initiative not only minimises costly errors and downtime, but also reduces the need for frequent cleaning. In addition, the controller records this data along with ambient temperature, laser run time and machine settings, creating a helpful diagnostic log for troubleshooting.

Specs

Model Nova 10 S Nova 14 S Nova 16 S
Machine Size
Working Area 27 9/16″ x 39 3/8
700mm x 1000mm
35 7/16″ x 55 1/8
900mm x 1400mm
39 3/8″ x 63
1000mm x 1600mm
Z-Axis Max Bed Travel 7-7/8" (200mm) 7-7/8" (200mm) 7-7/8" (200mm)
Machine Dimensions 67″ x 47 5/8″ x 42 1/8
(1700*1210*1070mm)
Includes 8" (200mm) Tube Extension
75 3/16″ x 55 3/8″ x 43 1/2
(1908*1405*1105mm)
82 11/16″ x 59 1/16″ x 43 1/2
(2100*1500*1105mm)
Machine Weight 1014lbs (460kg) 1389lbs (630kg) 1521lbs (690kg)
Laser Source
DC Glass Tube 100W Premium CO2 Glass Tube 100W/130W Premium CO2 Glass Tube 100W/130W/150W Premium CO2 Glass Tube
RF Metal Tube × × ×
RF Ceramic Tube 60W/100W/150W 60W/100W/150W 60W/100W/150W
CO2 Glass Cooling Method Water Water Water
RF Metal Cooling Method × × ×
RF Ceramic Cooling Method Water Water Water
Performance
Motors 2-Phase High Speed DC Steppers
Clear Path DC Servos (Signature)
2-Phase High Speed DC Steppers
Clear Path DC Servos (Signature)
2-Phase High Speed DC Steppers
Clear Path DC Servos (Signature)
Guide Rails Hiwin Linear Guide Rails
THK Linear Rails (Signature)
Hiwin Linear Guide Rails
THK Linear Rails (Signature)
Hiwin Linear Guide Rails
THK Linear Rails (Signature)
Max Acceleration 5G (DC)/8G (RF) 5G (DC)/8G (RF) 5G (DC)/8G (RF)
Max Speed 1200mm/s (DC Glass)
5000mm/s (Signature)
1200mm/s (DC Glass)
5000mm/s (Signature)
1200mm/s (DC Glass)
5000mm/s (Signature)
Minimum Font Size 1.0 x 1.0mm 1.0 x 1.0mm 1.0 x 1.0mm
Positioning Accuracy <=0.01mm <=0.01mm <=0.01mm
Max Scanning Precision 1000 DPI 1000 DPI 1000 DPI
Max Lifting Capacity 265lbs (120kg) 265lbs (120kg) 265lbs (120kg)
Configuration
Water Chiller Built-in S&A 5000 Vapor Compression Chiller Built-in S&A 5200 Vapor Compression Chiller Built-in S&A 5200 Vapor Compression Chiller
Fume Exhaust Fan Built-in 500W, 6" Dia. Centrifugal Fan Built-in 500W, 6" Dia. Centrifugal Fan Built-in 500W, 6" Dia. Centrifugal Fan
Air Assist Built-in 6.3 gal (24L) Air Compressor Built-in 10.5 gal (40L) Air Compressor Built-in 10.5 gal (40L) Air Compressor
Clean Pack Design X,Y and Z Axis X,Y and Z Axis X,Y and Z Axis
Autofocus Integrated Integrated Integrated
Wifi Data Transfer
Red Dot Positioning
Material Pass Through Door
Bullseye Leveling Guage
Dimmable Overhead Lighting
Smart Air Solenoid Valve
Modular Laser Tube Docking
Lid Material Polycarbonate Polycarbonate Polycarbonate
Table
Downdraft
Blade Table
Honeycomb Table
Material Collection Tray
Control & Software
Control Panel 5" Keypad & LCD display 5" Keypad & LCD display 5" Keypad & LCD display
Memory Capacity 1GB 1GB 1GB
Lightburn Software
Compatible Software CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the supported file formats CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the supported file formats CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the supported file formats
Operating System Windows & Mac OSX Windows & Mac OSX Windows & Mac OSX
File Formats Supported AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA
Optics
Toolless Mirror Change
Magnetic Lens Cartridge
Isolated Optics
1.5" Lens × × ×
2" Lens Optional Optional Optional
2.5" Lens Standard Standard Standard
4" Lens Optional Optional Optional
Mirror Sizes φ25mm (x4) φ25mm (x4) φ25mm (x4)
Beam Combiner φ25mm φ25mm φ25mm
Protective Window φ20mm φ20mm φ20mm
Safety
Safety Level Class 1 Class 1 Class 1
Smart Monitoring
Optics Temperature Alarm
Diagnostic Log
Fire Supression Optional Optional Optional
LED Status Light
Lid Interlock
Side Panel Interlocks
Water Flow Protection
Water Temperature Alarm
Power Requirments
Voltage/Frequency 110v/60Hz 110v/60Hz 110v/60Hz
Amperage 20A Dedicated Circuit 20A Dedicated Circuit 20A Dedicated Circuit
Rated Power Draw 1400W (max wattage laser tube) 1400W (max wattage laser tube) 1400W (max wattage laser tube)
Package
Package Size 71-5/8" x 52" x 48-1/4"
(1820*1320*1225mm)
Includes 8" (200mm) Tube Extension
78-3/8" x 59" x 48-1/4"
(1990*1500*1225mm)
85-7/8" x 62-9/16" x 48-1/4"
(2180*1590*1225mm)
Packed Gross Weight (G.W) 1124lbs (510kg) 1455lbs (660kg) 1609lbs (730kg)
Add-Ons
Camera
Smart Rotary Optional Optional Optional
Multi Roller Optional Optional Optional
Rotary Chuck Optional Optional Optional
PiBurn or Rotoboss Optional Optional Optional
Filtered Fume Extractor Optional Optional Optional
Wireless Remote Control
Air Compressor
Support
Knowledge Base
Email Support
Phone / Video Support Unlimited Unlimited Unlimited
Onsite Repairs
Parts on Demand
Startup Training
Warranty 2 Year Factory Warranty + Extended Warranty options 2 Year Factory Warranty + Extended Warranty options 2 Year Factory Warranty + Extended Warranty options

Videos

Ads-on


Rotary Rotoboss

Our roto-rotary product, allows you to handle a variety of beverage vessels. Adjustable sides allow you to position items of different shapes, and a spring-loaded wheel prevents bowls from sliding and falling. This advanced design guarantees stability and flexibility in use.

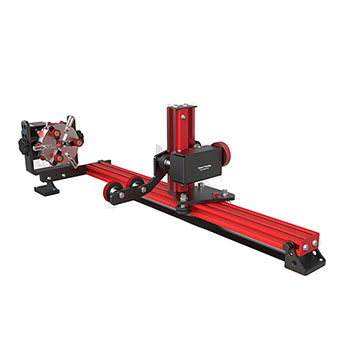

PiBurn Grip

The PiBurn Grip is an innovative attachment with a rotating handle that allows laser engraving of a variety of objects from rings to bowls and glassware. Thanks to its stable handle, it provides precise engraving in both directions, opening up new possibilities for personalisation.

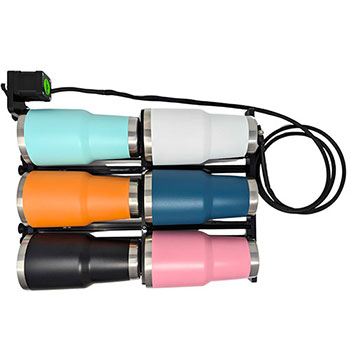

Rotating Multi-Rool Chuck

Increase your productivity with the ability to hold up to six 32 oz curved cups or six 20 oz conical cups simultaneously. This versatile holder fits all Aeon laser models, allowing for flexible customisation to suit your needs.

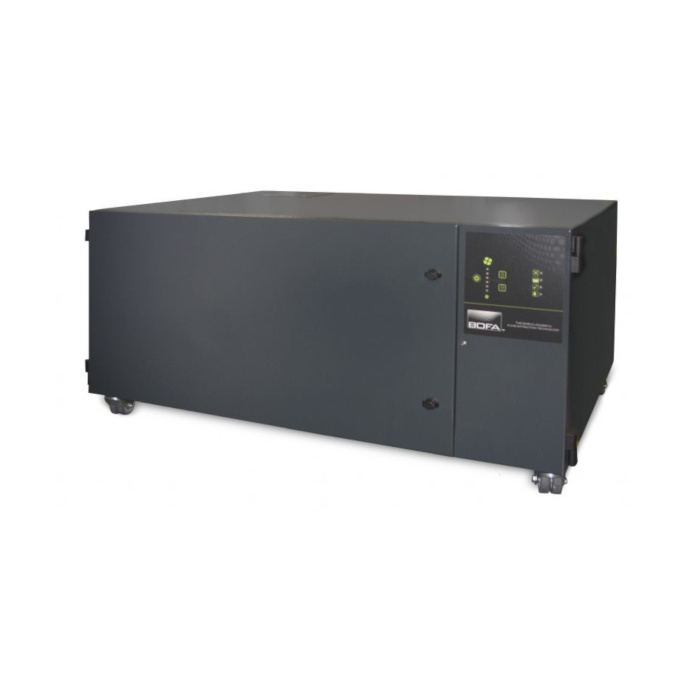

Bofa AD Base 2 Oracle

The AD Base 1 Oracle has been designed so that a number of manufacturer’s laser engravers can sit on top of the extractor, effectively doubling it up as a workstation.

Automatic flow control allows the user to pre-set correct flow rates, giving lower noise levels and helping further protect both the combined filter and the patented DeepPleat DUO pre-filter.

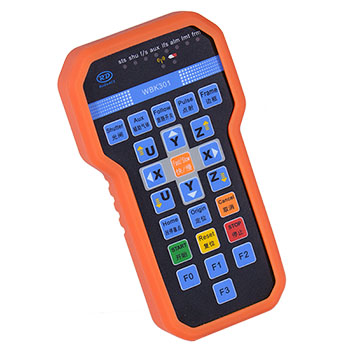

Remote Control

Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.

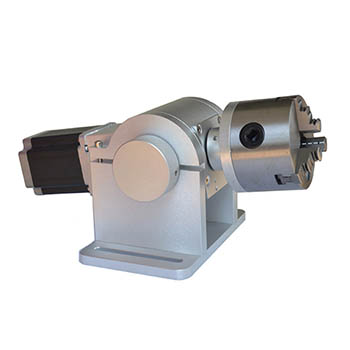

Rotary Chuck

This 3-jaw rotary chuck allows precise manipulation of cylindrical objects. Simply clamp an object up to 3.93 inches (100 mm) in diameter and then rotate it 360 degrees to perform engraving.

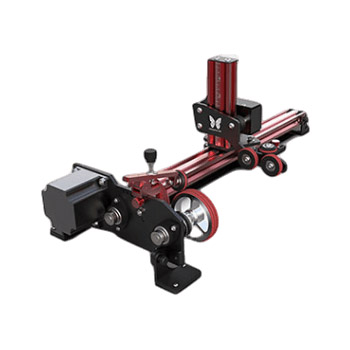

PiBurn 4.0 with Magnetic stands

PiBurn is an effective tool for easy and precise engraving of cylindrical objects such as cups, glasses, bottles or champagne glasses. It is supplied ready to use, equipped with stabilising magnetic feet to ensure stability when working.

Emp Storage Cabinet: Functionality and organization

This state-of-the-art stacking storage solution from EMP helps you organise your sheets by also offering a practical stand. Providing tidiness and easy access to documents, it improves efficiency in the office or workplace.

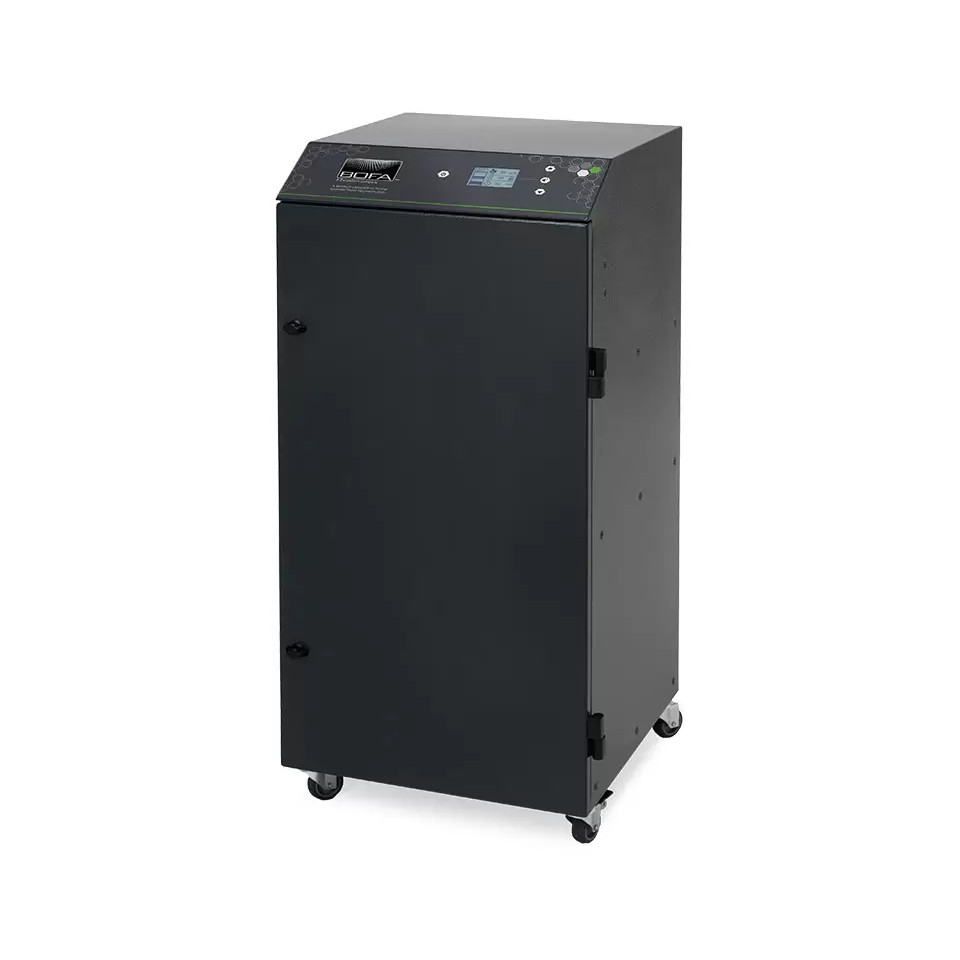

Bofa AD Base Oracle IQ

The Intelligent Operating System (iQ) performs at two distinct levels. Operators benefit from the ease of operation and clarity of real-time information, the system also provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.

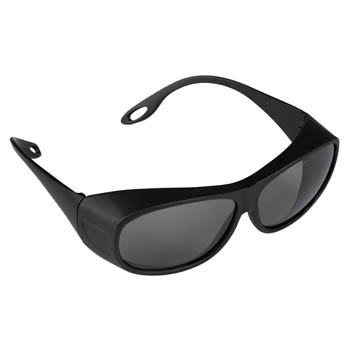

CO2 Laser Protection Googles safe and efective protection

Ensure eye protection from harmful infrared radiation with our CO2 laser goggles (10.6 um). High quality and ergonomic design provide effective protection and comfortable
