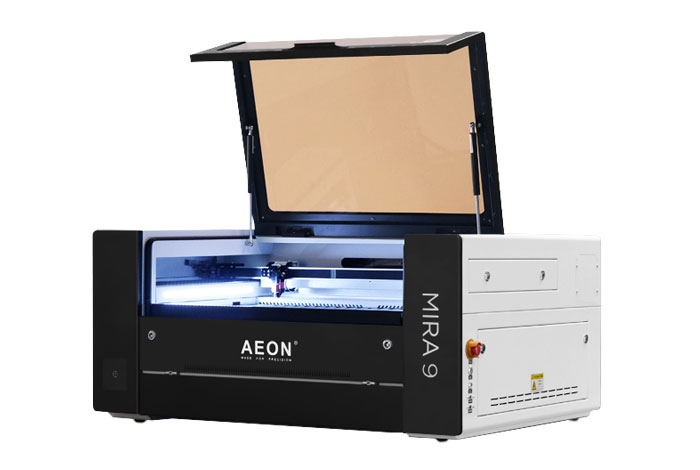

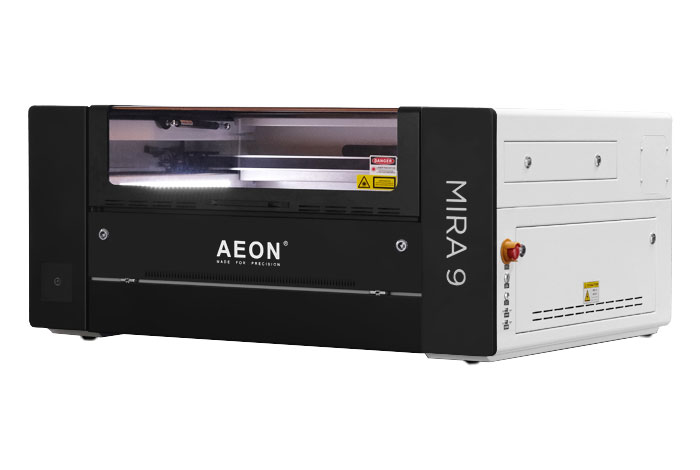

CO2 Laser Cutter & Engraving Machine

Clean Pack Design
Built-in Water Cooling System, Exhaust Fan and Air Assist Pump
Super fast engraving speeds of up to 1200mm/s
table 700 x 450 mm ( front door for bigger materials)
Standard Honeycomb Table
∇ Class 1 Laser


Class 1 Laser means no better ones in safety. Mira PRO will surprise You with its quality versus price relationship. Fast engraving, built-in everything You need and clean pack design are making a huge difference. An all-in-one machine so it will easily fit Your garage or small workshop, the engraving speed is up to 1200mm/s and due to drive belts protecting the linear rails it has reduced dust accumulation to almost 0. Enhanced cutting possibilities. On the safety side - upgraded with a fully interlocked case and keyed ignition fire-resistant tempered glass lid, gas shocks and rubber seals. Take Your Mira Pro home and boost Your productivity!


The creators of the MIRA series designed the most effective style of work. Thanks to high-speed digital stepper motors, linear guides and Japanese bearings, the laser achieves engraving speeds of up to 1200 m / s, and the cutting speed can be up to 300 mm / s with an acceleration of 1.5 G. Undoubtedly, this device is the best choice on the market!


The biggest problem related to working with laser devices is dust, fumes and particles produced during processing, which deteriorate the results of work and slow down the machine's operation. Clean Pack technology protects all mechanical parts and ensures the maintenance of perfect results, high speed of work and extends the life of the equipment.

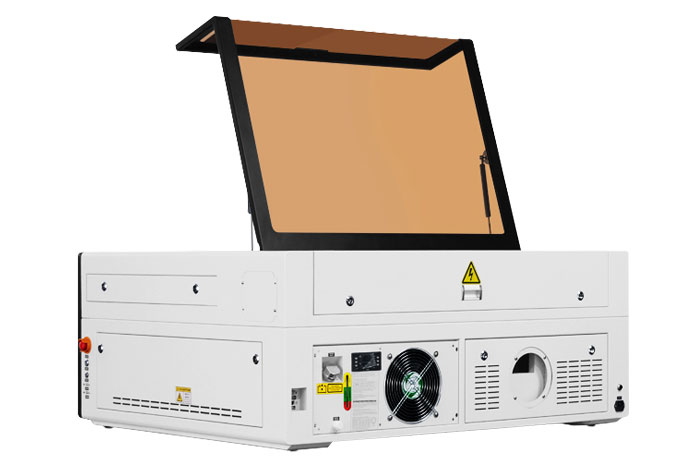

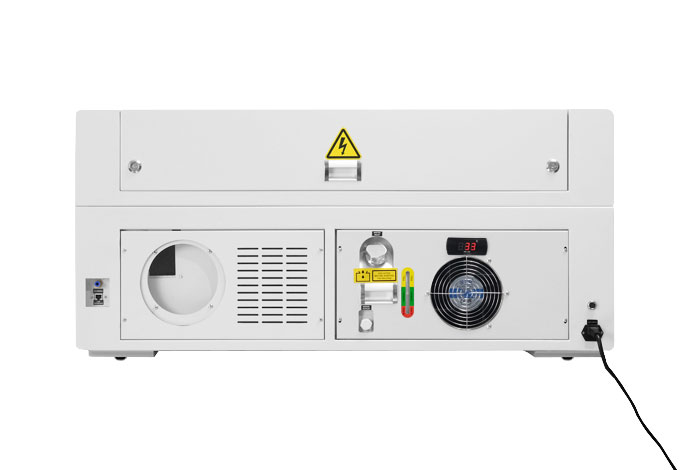

All laser machines available on the market need an extraction fan, a cooling system and an air compressor to work efficiently. The new MIRA was equipped with these components already at the production stage, so there is no need to retrofit the workstation. Just put it on the table and go to work!

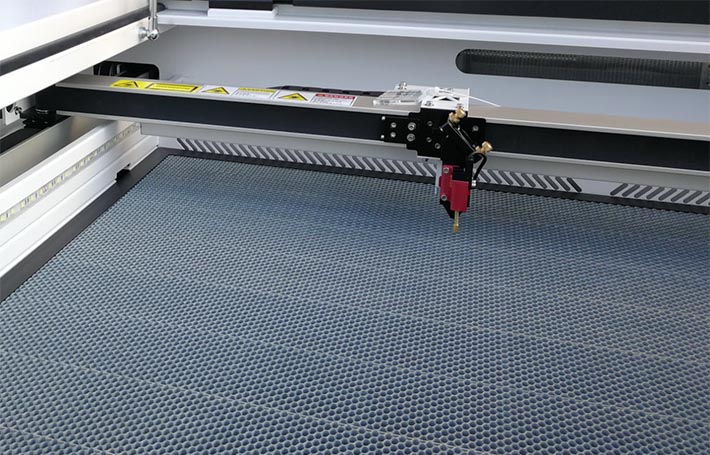

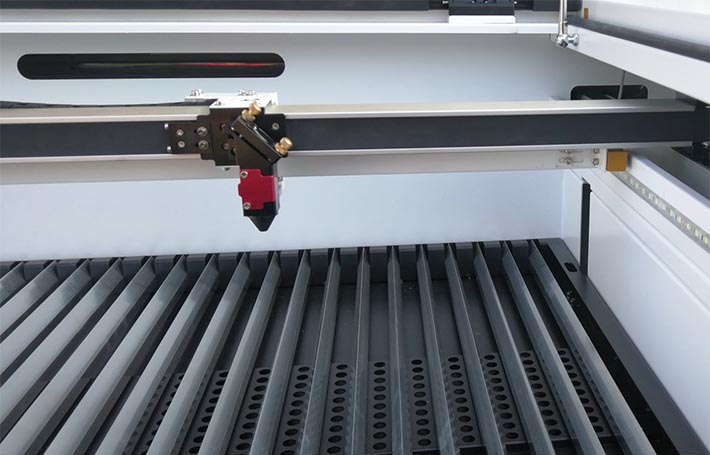

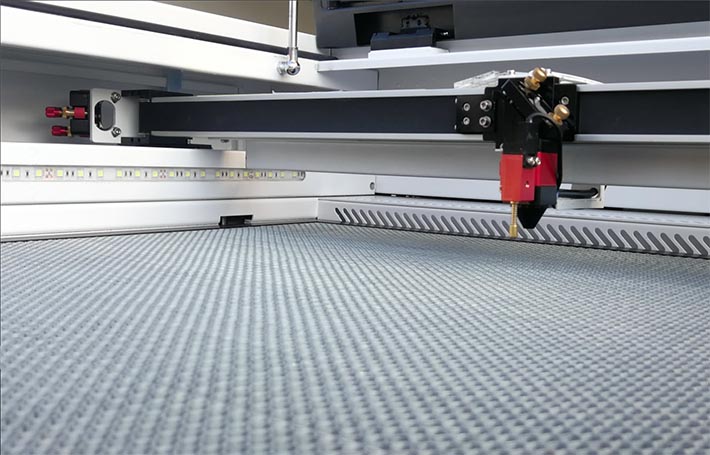

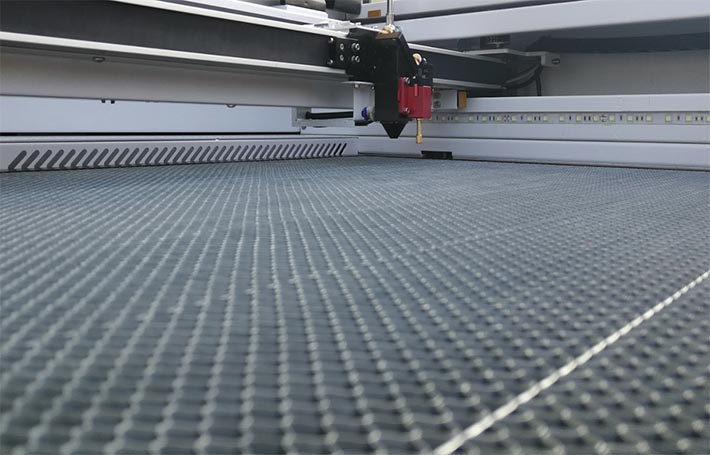

Depending on the material used, the appropriate work table should be selected. The MIRA series has a honeycomb table and a knife table as standard. The honeycomb table creates a vacuum. Thanks to easy access, you can easily place the long materials.


The MIRA series was developed based on a high-speed multi-communication system. You can connect to your machine via WiFi, USB cable, via LAN, or by sending data via a USB flash drive. The devices have an internal memory with a capacity of 256 MB, an easy-to-use panel and color display. You can work on it even offline, and when there is a power cut, the device will go into stop mode without losing data.


Choose a rotary chuck or a roller rotary and enjoy rotary engraving without problems.


The body can be separated into two parts, which allows it to be transferred through the 80 cm door. The internal LED lighting on the left and right sides of the machine provides a very bright light.


TheRD WORKS software is user-friendly and has convenient operating functions which make the operation of the machine even easier. The software supports all available file formats and allows you to work directly with programs such as CorelDraw, Illustrator or AutoCAD. You can also set a direct print command using the keyboard shortcut: CTRL + P. Working well with popular Lightburn.


Model MIRA 7045 MIRA 9060
Working area: 700 x 450 mm 900 x 600 mm
Machine size: 1100 mm*845 mm*480 mm 1300 mm*1010 mm*490 mm
Available powers: 30W/60W 30W/60W/80W/100W
Laser tube: CO2 Glass Laser Tube/RF Metal Tube/Ceramic Tube options
Table adjustment in the Z axis: 100 mm
Machine net weight: 135 kg  150 kg
Machine weight with packaging: 158 kg  190 kg
Package size: 1220*970*700 mm 1370*1050*590 mm
Voltage: 220V AC single phase
Engraving speed: 1200mm/s
Cutting speed: 680mm/s
Cutting thickness: 0-20mm
Min size of the engraved object: Font 1.0mm*1.0mm
Accuracy: 4000 DPI
Software: RD works/Aeon ProSMART
Supported graphic formats: DSP/PLT/BMP/DXF/AI/DWG etc.
Compatible software: CorelDraw/Photoshop/AutoCAD
Red point positioning: Yes
Smart rotary device: Optional
Autofocus: Yes
WiFi: Yes




Smart Roller Rotary

Expand your capabilities with this versatile roller rotary device. Perfect for engraving bottles, champagne flutes, wine glasses, etc.

Bofa AD Base 2 Oracle

The AD Base 1 Oracle has been designed so that a number of manufacturer’s laser engravers can sit on top of the extractor, effectively doubling it up as a workstation.

Automatic flow control allows the user to pre-set correct flow rates, giving lower noise levels and helping further protect both the combined filter and the patented DeepPleat DUO pre-filter.

Remote Control

Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.


Get a bird's eye view of your workspace right on your computer screen for quick and accurate placement of your design, so that you don’t have to measure (LightBurn upgrade required).

Rotary Chuck



Bofa AD Base Oracle IQ

The Intelligent Operating System (iQ) performs at two distinct levels. Operators benefit from the ease of operation and clarity of real-time information, the system also provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.



Not just any old table will do. The R&D team put their signature on this sleek modern looking stand that is also on wheels for added convenience.


CO2 Laser Protective Goggles

Protect your eyes from infrared light radiation that can compromise your vision over time. Glasses are designed for use with CO2 lasers (10.6um) only.
