Expert level, powerful hybrid

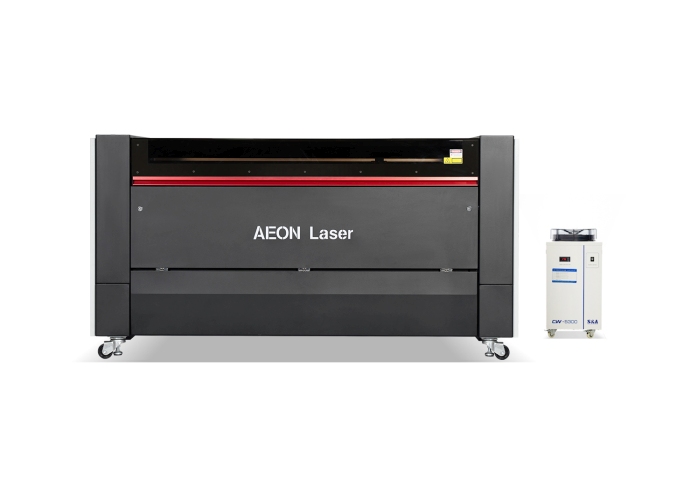

NOVA SUPER16 260W
∇ Modern hybrid design. Equipped with two laser tubes: glass and RF metal.
∇ Dual-core 260W DC glass laser tube
∇ 60W RF metal laser tube
∇ Maximum acceleration: 8G
∇ Maximum speed: 4200 mm/s
∇ Pass-through doors for material feeding
∇ Intelligent detection and diagnostic system
∇ Super Clean Pack design: enhanced protection and cleanliness
∇ Dual-core 260W DC glass laser tube
∇ 60W RF metal laser tube
∇ Maximum acceleration: 8G
∇ Maximum speed: 4200 mm/s
∇ Pass-through doors for material feeding
∇ Intelligent detection and diagnostic system
∇ Super Clean Pack design: enhanced protection and cleanliness
Features
NOVA Super16 260W – A New Level of CO₂ Power
Working with thick materials? Want ultra-fast engraving? Now you can do both – on a single machine.
AEON NOVA Super16 260W Glass + RF 60W is the answer to the needs of the most demanding users. The dual-core 260W glass DC tube in a parallel dual configuration delivers stable, high power for cutting even thick materials – where other machines simply fall short. On top of that, the 60W RF metal tube offers engraving speeds up to 4200 mm/s with acceleration up to 8G – perfect for precise marking with great depth and exceptional detail.
What makes the NOVA Super16 stand out from the competition?
AC servo motors, integrated autofocus, tool-free lens replacement with a drawer system, a fully sealed optical path, and dust-proof linear guides – these are not add-ons, they are standard. The machine is ready to work right out of the box, with no compromises.
A working area of 1600 × 1000 mm, 200 mm Z-axis travel, LightBurn compatibility, Wi-Fi, positioning camera, and a rotary attachment included – everything you need in one complete package.
Working with thick materials? Want ultra-fast engraving? Now you can do both – on a single machine.
AEON NOVA Super16 260W Glass + RF 60W is the answer to the needs of the most demanding users. The dual-core 260W glass DC tube in a parallel dual configuration delivers stable, high power for cutting even thick materials – where other machines simply fall short. On top of that, the 60W RF metal tube offers engraving speeds up to 4200 mm/s with acceleration up to 8G – perfect for precise marking with great depth and exceptional detail.
What makes the NOVA Super16 stand out from the competition?
AC servo motors, integrated autofocus, tool-free lens replacement with a drawer system, a fully sealed optical path, and dust-proof linear guides – these are not add-ons, they are standard. The machine is ready to work right out of the box, with no compromises.
A working area of 1600 × 1000 mm, 200 mm Z-axis travel, LightBurn compatibility, Wi-Fi, positioning camera, and a rotary attachment included – everything you need in one complete package.

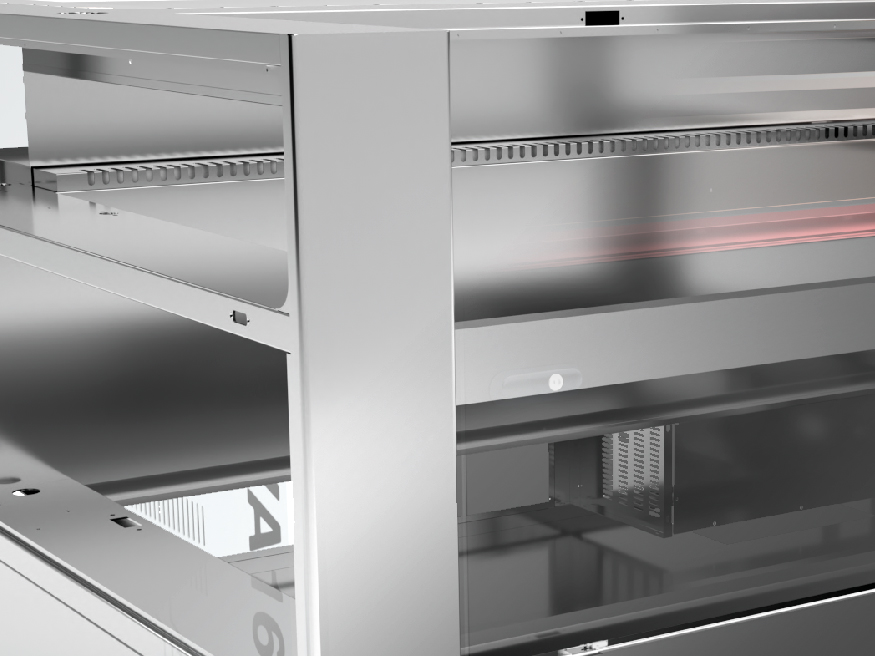

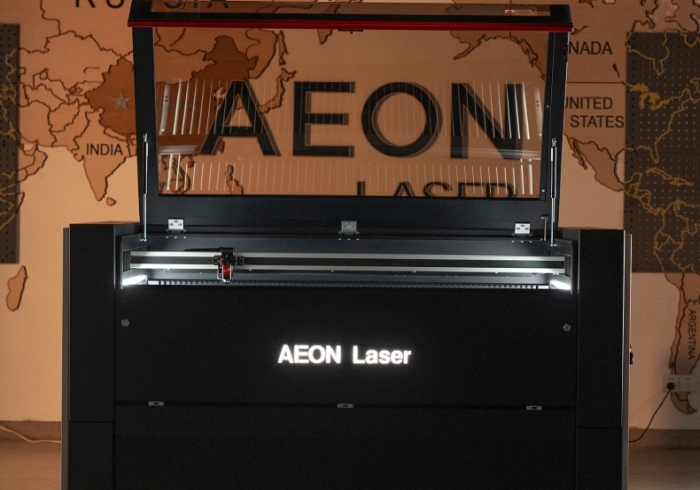

∇ Robust Unibody
Most lasers use a frame where parts are bolted to a thin shell. For high-speed performance, the frame must be rigid to prevent flexing. The Redline series has a strong frame that stays stable even with the side panel removed, making troubleshooting easier. This rigidity ensures consistent precision at maximum speeds. Additionally, the Redline NOVA can be separated to fit through narrow doors.

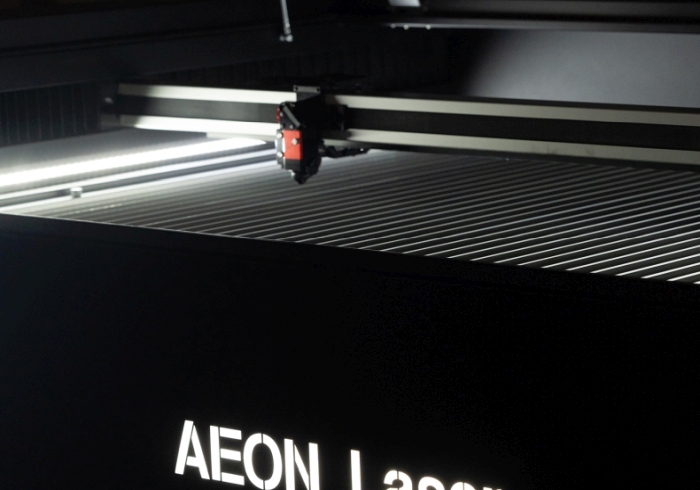

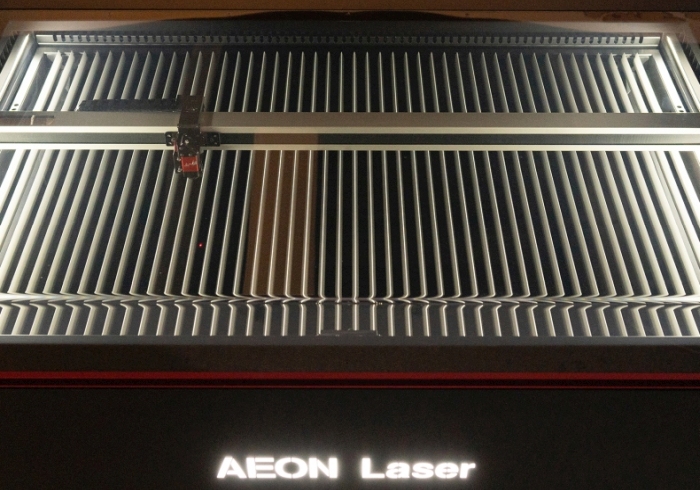

∇ Rigid Linear Guide Rail
Linear guide rails with ball bearings offer greater precision and smoother motion, which improves print quality and longevity. Further, AEON Laser has been conducting rigorous test on all kinds of rails for over 7 years, and selected the most rigid one to meet the requirements for high speed and high precision.

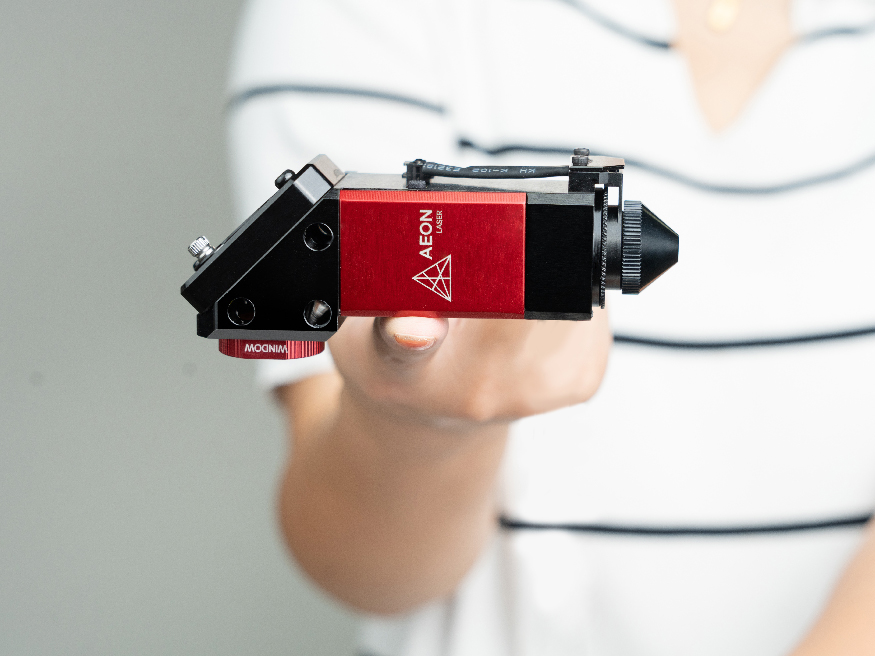

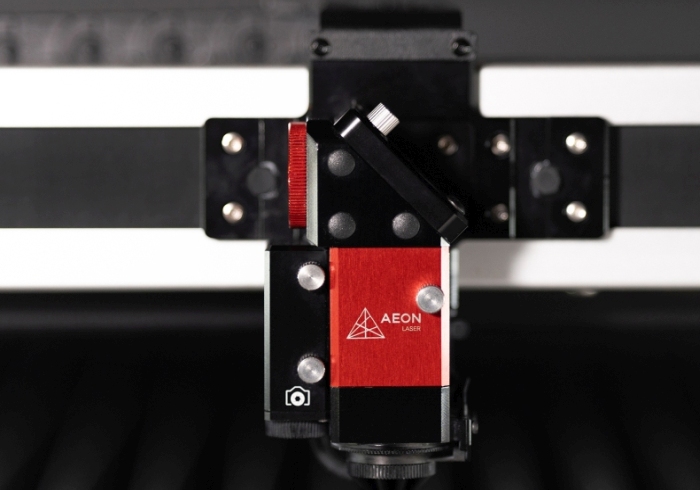

∇ Featherweight Laser Head
A lightweight laser head contributes to less over-scanning and an overall reduction in vibration, reducing motor load and significantly enhancing the speed.

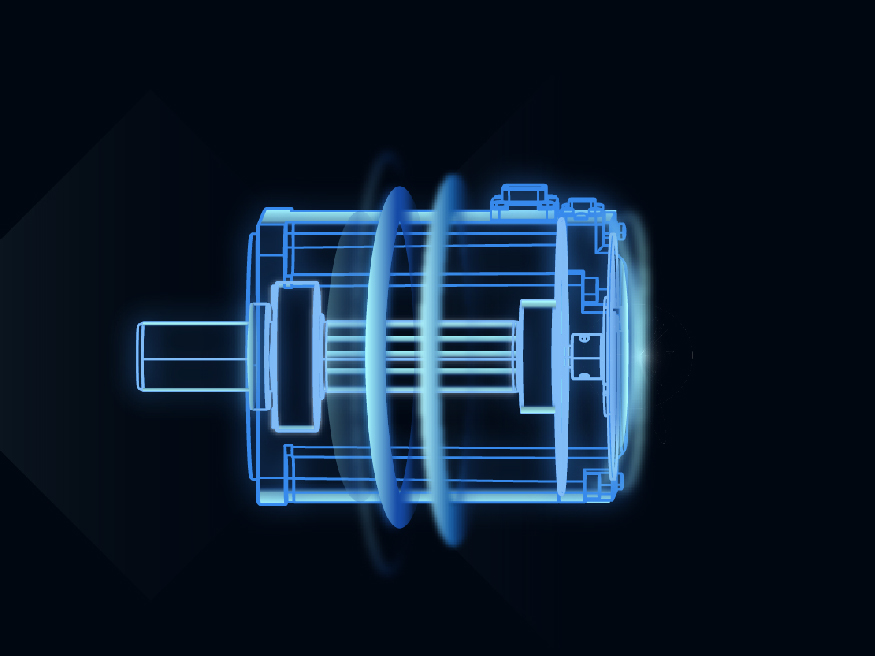

∇ Full AC Servo Motor
Step into the true closed-loop era with AEON Laser—no more hybrid servos. Our Full AC Servo Motors deliver instant acceleration at 8G of force, achieving top speeds of 4,200 mm/sec on RF models. While other manufacturers may use similar motors, AEON Laser stands out by combining speed, precision, and longevity, a feat few can match.

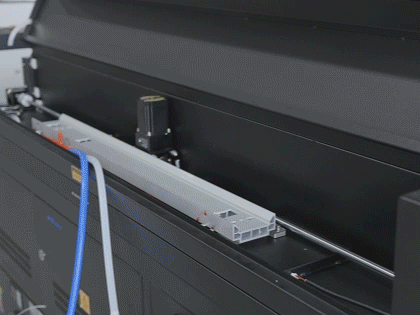

∇ Tool-Less Optic Path with Laser Tube Docking Station
Eliminate the hassle of traditional tube replacements and beam alignment. AEON’s innovative laser tube docking station lets you seamlessly swap tubes in and out without the need for tools or calibration the optic path. Say goodbye to painstaking adjustments and hello to effortless precision.

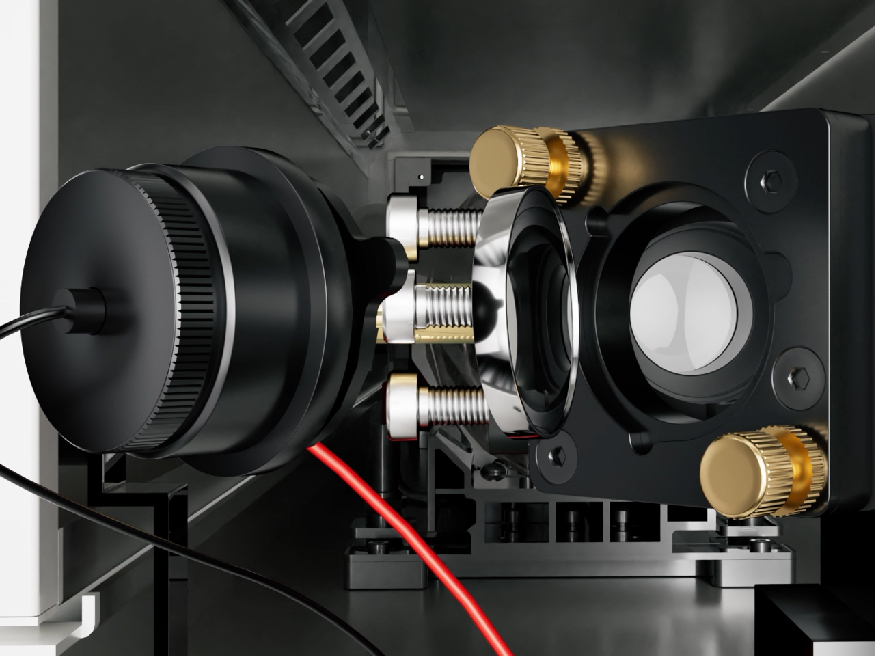

∇ Easily Accessible Mirrors
AEON’s mirrors are designed for ultimate convenience, allowing effortless cleaning or replacement without needing tools. Plus, there's no need to re-calibrate after maintenance, ensuring seamless operation and consistent performance.

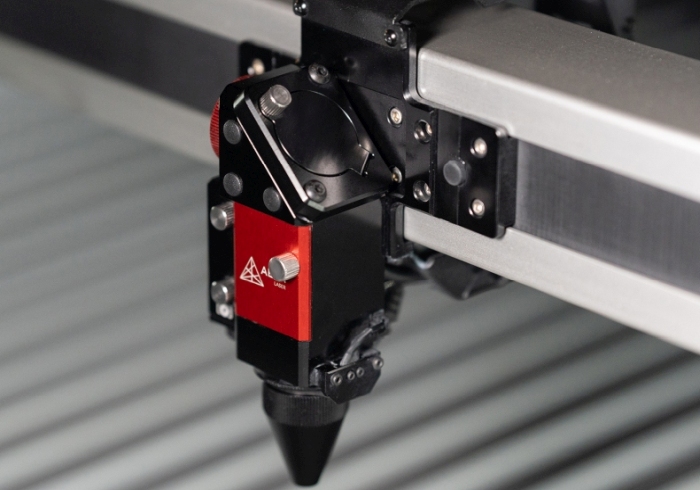

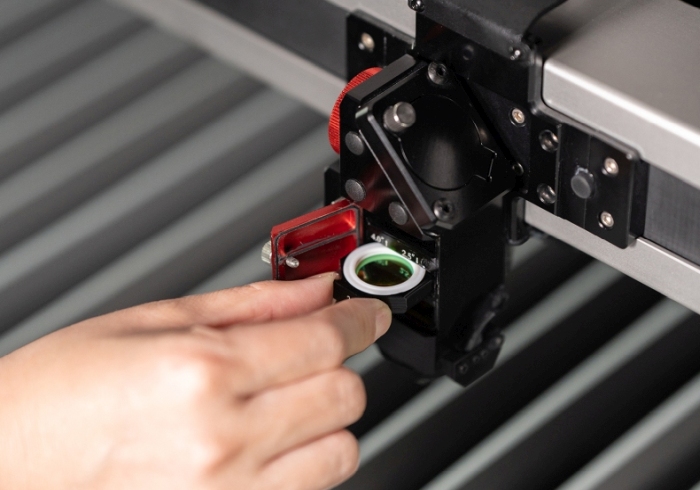

∇ Magnetic Lens Carriage: Quick and Hassle-Free Maintenance
All Redline Series feature a magnetic lens carriage, making lens maintenance a breeze. The focal lens is secured with a press-fit silicone washer, allowing users to easily clean or swap lenses for various tasks without complications.

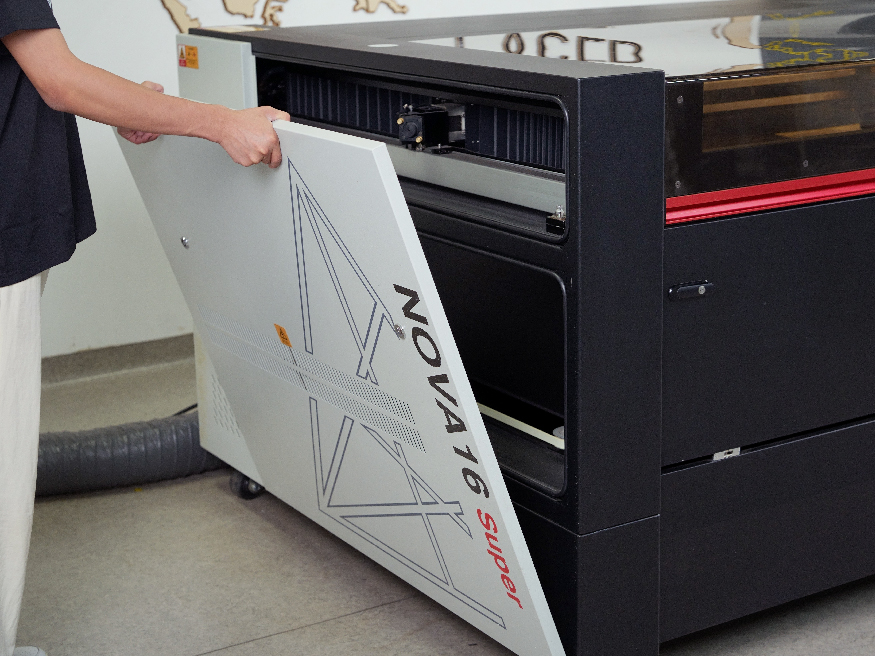

∇ Modular Design: Simplifying Maintenance & Repairs
AEON’s philosophy of effortless serviceability is embodied in its modular design. Most components are engineered for rapid removal and replacement, featuring quick connectors for maximum convenience. From chillers to sensors and motors, any issues can be resolved swiftly. Simply submit a ticket, and our service team will ensure prompt delivery of the required parts, making replacements straightforward—even for beginners.

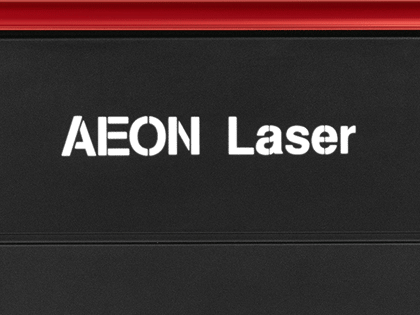

∇ LED Status Light
The Aeon Laser logo on the front access door panel is now backlit and doubles as a functional Status Light, illuminating white when in standby, red when an error is encountered, and green while in operation, adding both form and function to an already stunning design.
∇ Pro-Smart Monitoring & Alert System
All AEON’s Pro-Smart Monitoring & Alert System integrates thermal sensors into all optics to monitor temperature in real-time. These sensors record and report temperature readings directly to the keypad, significantly reducing the risk of unexpected failures. If temperatures rise beyond the safe range, the system triggers an alert, prompting immediate cleaning of mirrors or lenses to maintain optimal performance.Additionally, the system will remind you to perform essential maintenance tasks, such as greasing the guide rail or draining water from the Redline NOVA’s built-in ultra-quiet compressor, which can be maintained with a single touch.
This proactive approach not only prevents costly mistakes and downtime but also reduces the need for frequent unnecessary cleaning. To enhance functionality further, the controller logs key data, including ambient temperature, laser tube runtime, and machine parameters, serving as a diagnostic record for easy troubleshooting when required.

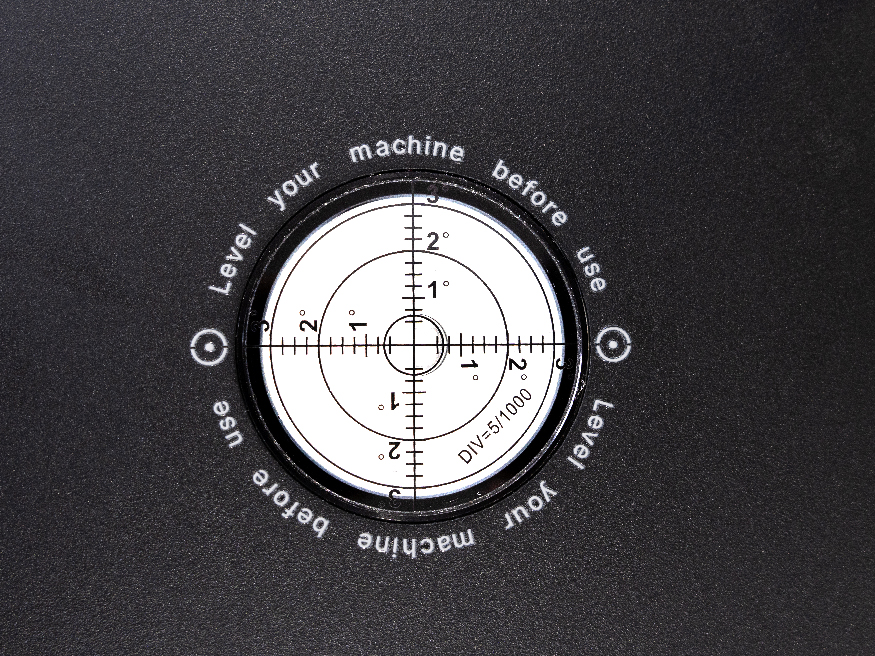

∇ Bullseye Leveling Gauge: Precision Leveling Glance
Each Redline series is equipped with a bullseye leveling gauge, making it easy to ensure your laser is perfectly level—a critical detail often overlooked by engineers. Proper leveling is essential; without it, axles experience increased friction and distortion, significantly shortening the lifespan of the rails.Specs
| Technical Data | Technical Parameters | NOVA16 Super 260W |
|---|---|---|
| Dimensions | Working area (X × Y) | 1600×1000 mm |
| Z-axis travel | 200 mm | |
| Machine dimensions (mm) | 2100×1510×1125 mm | |
| Glass CO₂ laser tube | 260 W | |
| Laser Source Options | RF metal tube | 60 W |
| Key Parameters | Max engraving speed | RF tube: 4200 mm/s |
| Max acceleration | 8G | |
| Minimum font size (RF tube) | 1.0 × 1.0 mm | |
| Max table load | 120 kg | |
| Water cooling unit | External water chiller S&A 5300 | |
| Configuration | Exhaust fan | Built-in 500 W |
| Air assist | Air pump 135 W | |
| Fully adjustable X and Y axes | ✓ | |
| Autofocus | ✓ | |
| Wi-Fi data transfer | ✓ | |
| Red dot positioning | ✓ | |
| Pass-through doors | ✓ | |
| Solenoid valve | ✓ | |
| Quick lens mounting system | ✓ | |
| Internal memory | 1G | |
| Cover material | Polycarbonate | |
| Table | Honeycomb table airflow | ✓ |
| Blade table | ✓ | |
| Honeycomb table | ✓ | |
| Material collection drawer | ✓ | |

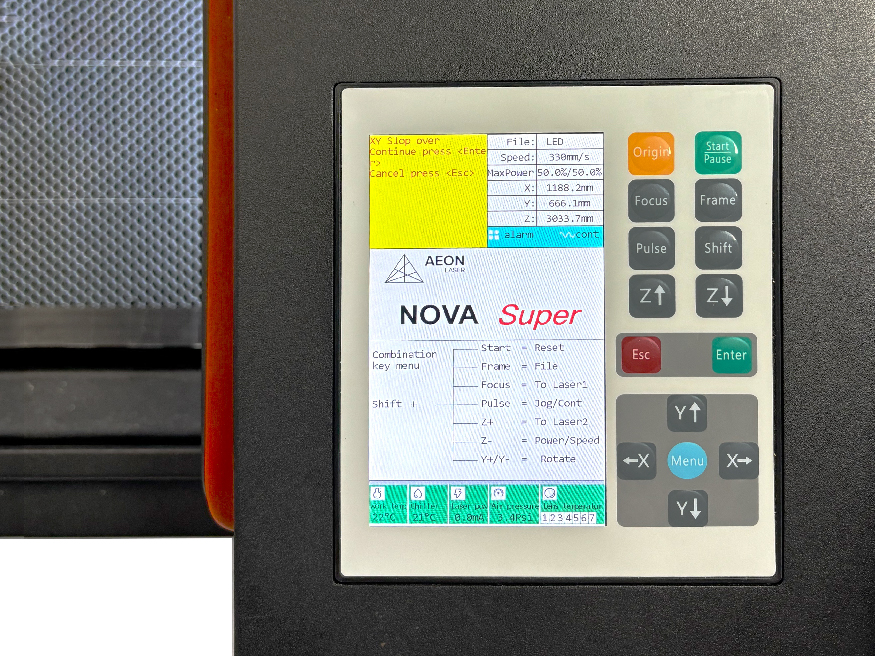

| Control & Software | Control panel | Keyboard and LCD display |
| RDWorks software | ✓ | |
| LightBurn software | Optional | |
| Compatible operating systems | Windows & Mac (LightBurn) | |
| Compatible software | CorelDraw / Illustrator / AutoCAD | |
| Monitoring & Diagnostics | Smart monitoring panel | ✓ |
| Alarm & fault diagnostics | ✓ | |
| Status indicator | ✓ | |
| Optical System | Lens | 2.5" installed / 4.0" included |
| Reflective mirrors | 4×φ30 | |
| Beam combiner | φ25×1 | |
| Protective mirror | φ20×1 | |
| Safety class | Class 1 enclosure | |
| Safety | Cover interlock | ✓ |
| Side cover interlock | ✗ | |
| Water flow sensor | ✓ | |
| Water temperature alarm | ✓ | |
| Power | Power supply | 110 V / 220 V |
| Rated power | 3600 W (with laser tube) | |
| Packing dimensions | 2180×1590×1210 mm | |
| Package | Net weight | 566 kg |
| Gross weight | 730 kg | |
| Accessories | Rotary attachment | ✓ |
| Camera for positioning & preview | ✓ | |
| Air filter | ✓ | |
| LightBurn software | ✓ |
Dodatki

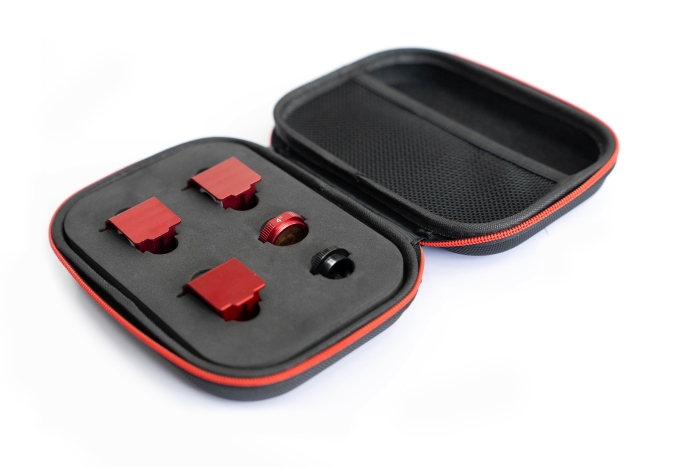

New – Lens Kit for AEON Laser System
